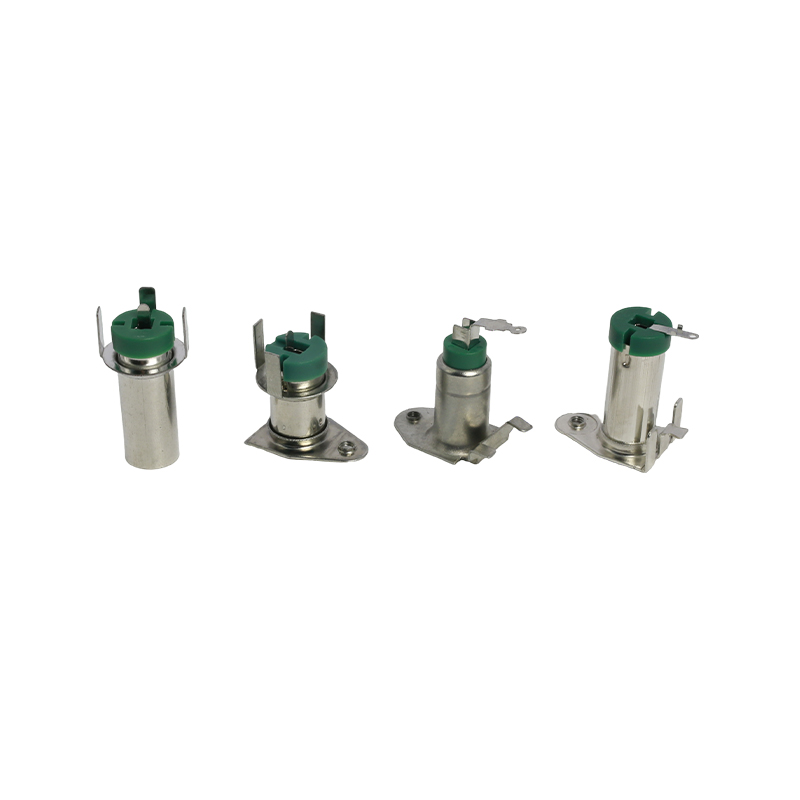

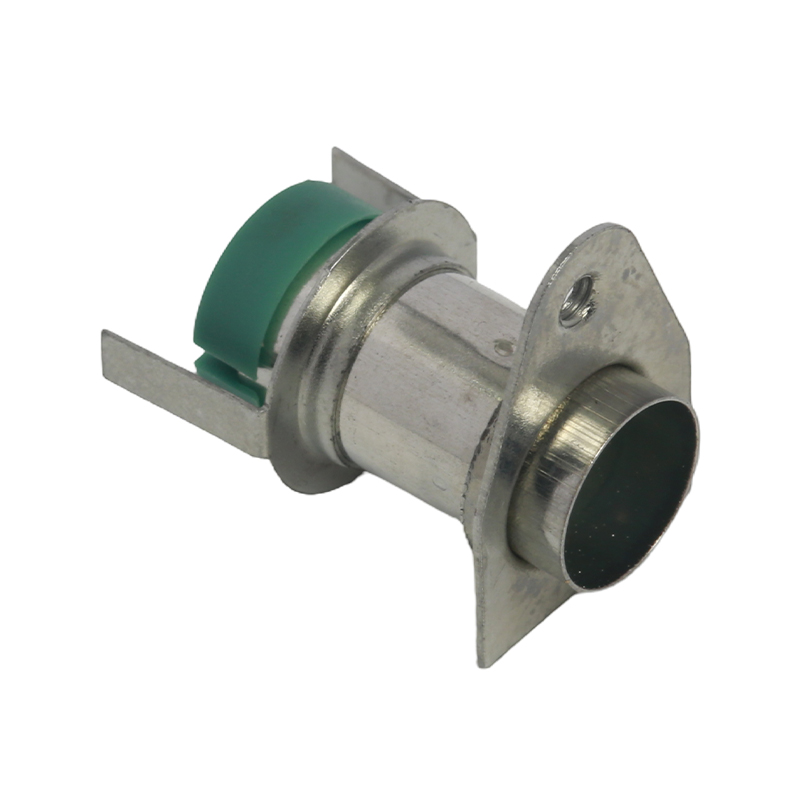

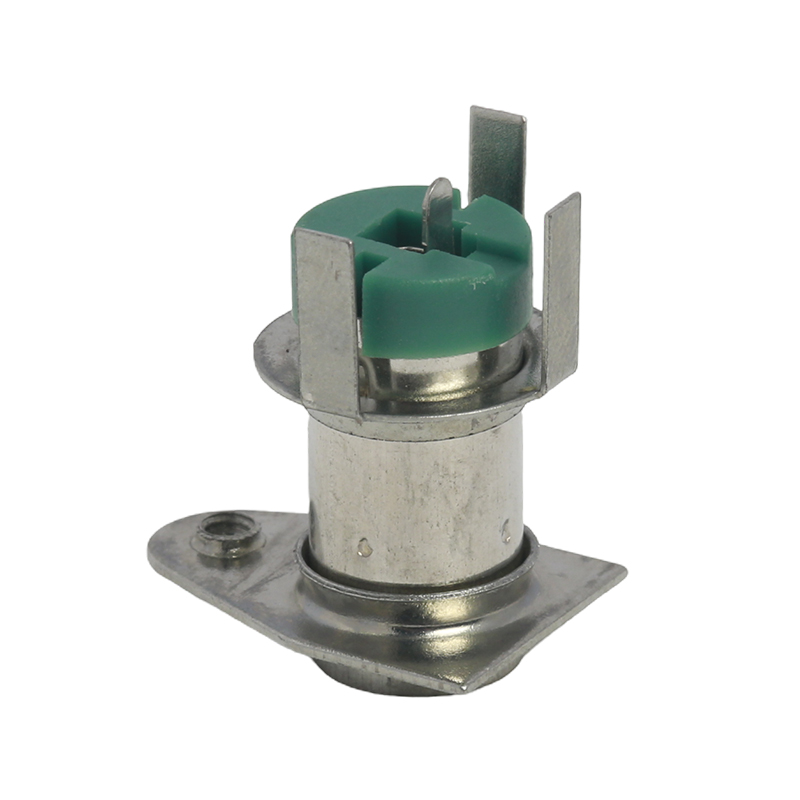

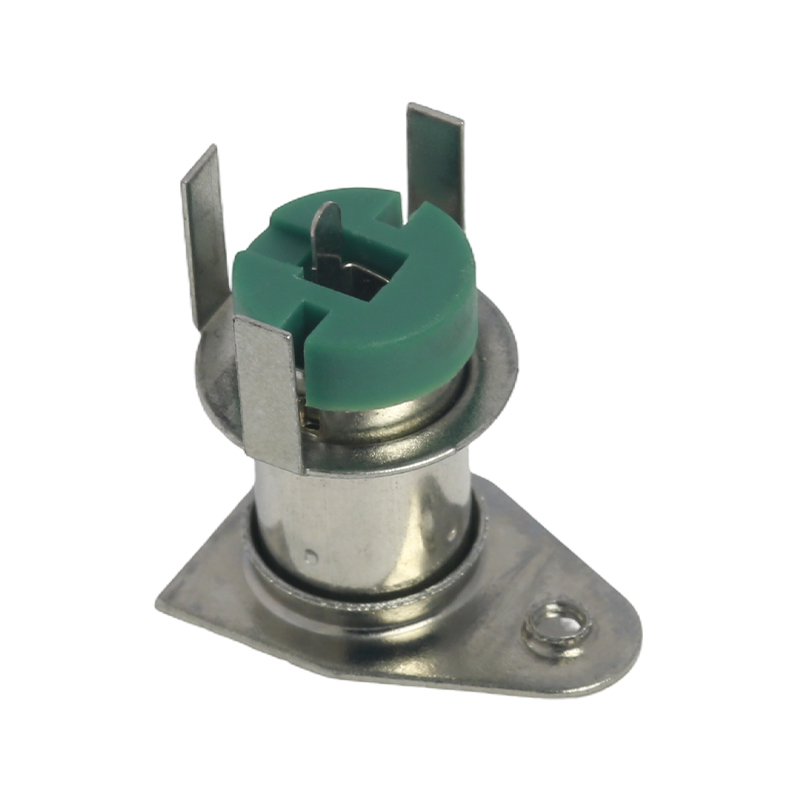

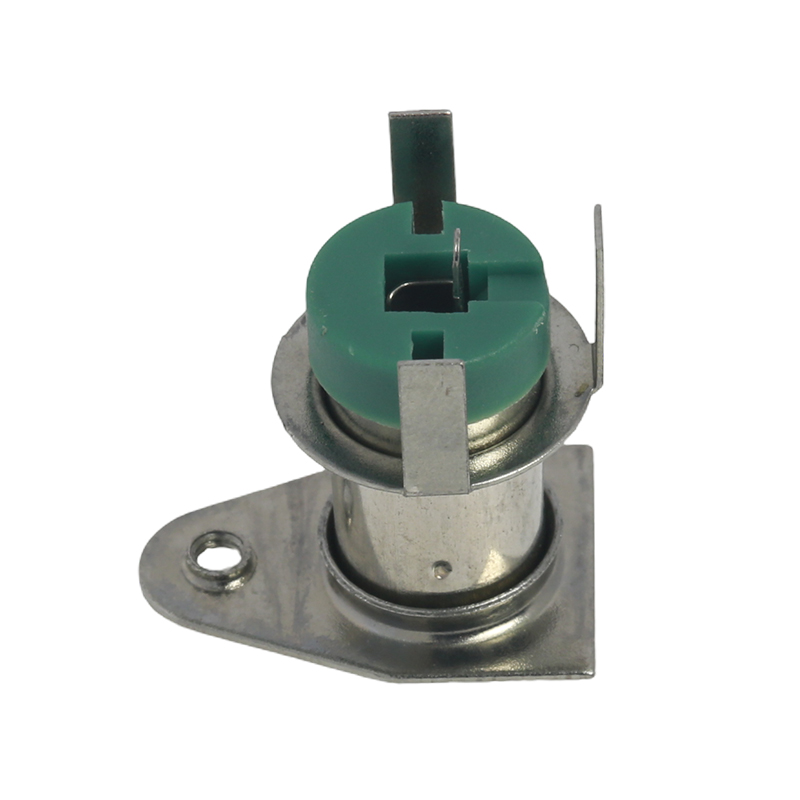

TC13-2 Vertical Radio Antenna Socket With Fixing Plate 21.6H
TS70048-02
The car radio antenna socket is mainly used in car MP3/MP5 players or navigation devices to receive audio signals. The materials include copper tube iron pin and copper tube copper pin. The insulating medium is PBT material. There are three fixed pins, one signal pin, and the plug board is welded. The salt spray test can pass 8H. It is equipped with a screw fixing plate, and the screw holes are M2.6/M3.0. The heights are 21.6H/24/26.6H/28H/30H. The daily production capacity is 10KPCS.
